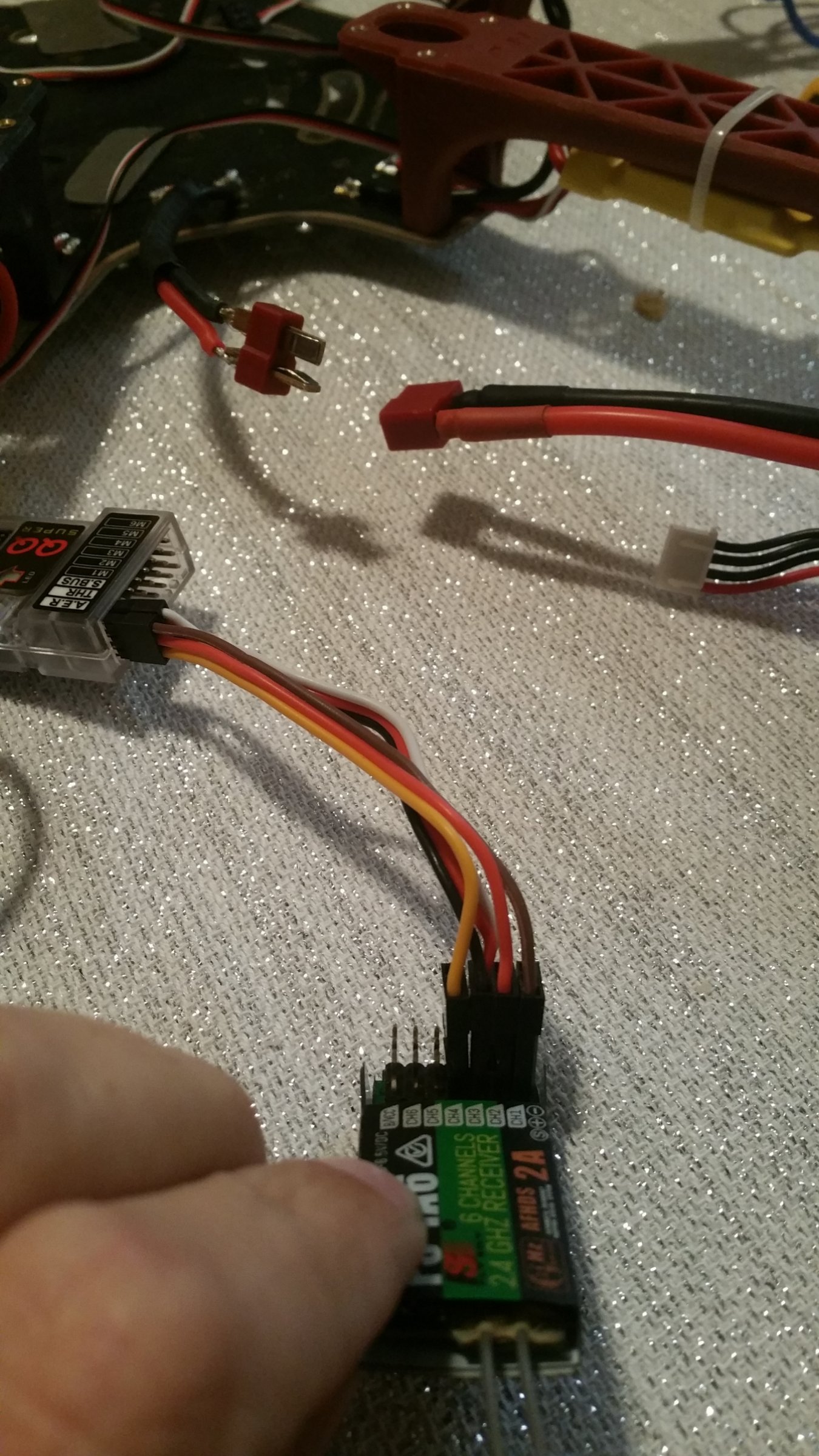

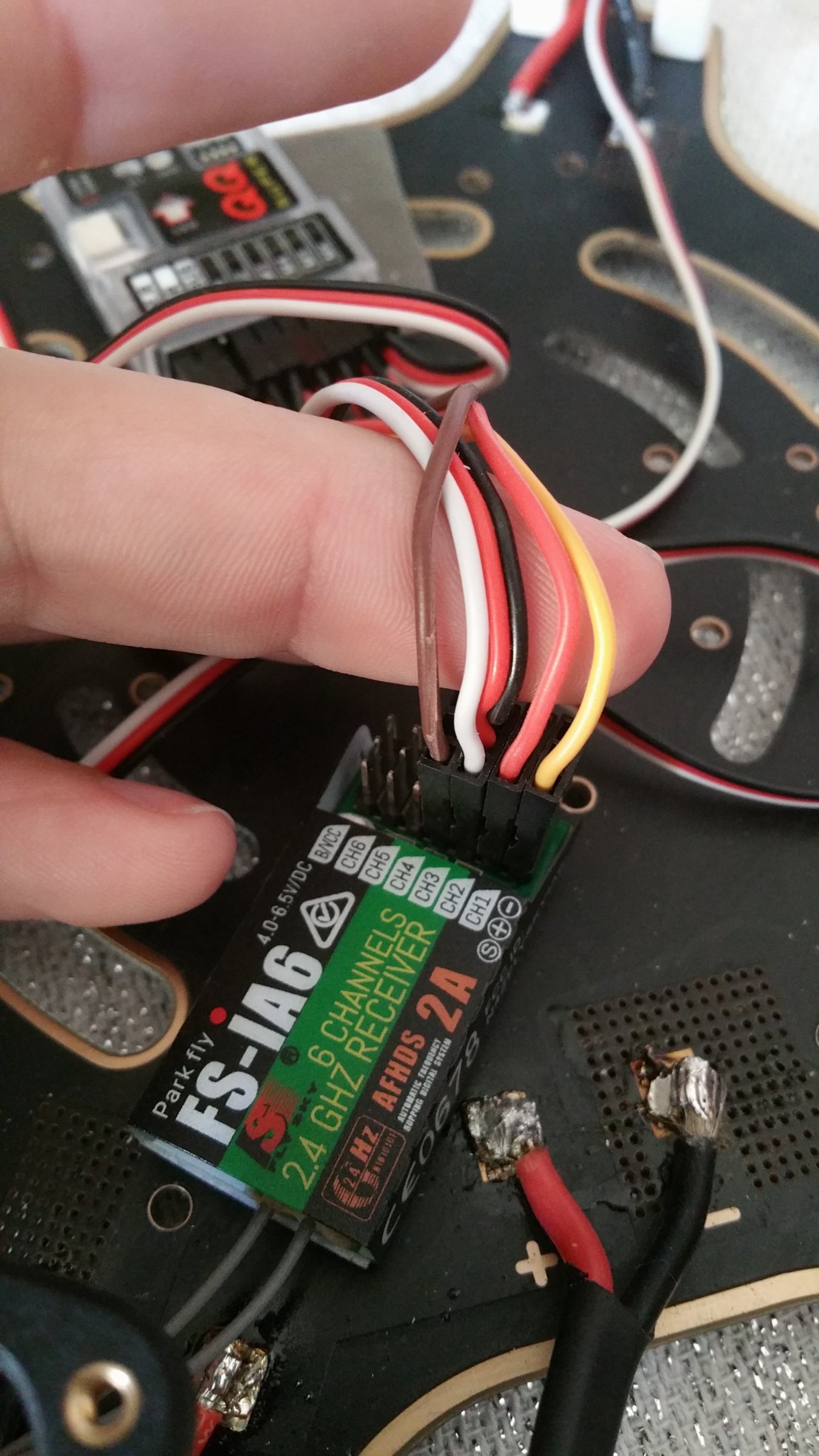

I'm very new to drones. This is my first build. So what I have: Djf550 hex Fs-i6 Fs-ia6 Super qq controller 30a esc Emax motors Symptoms: No reaction from motor. I get green light on super qq. All esc start up beep pause then beep again. Motors spin as they should Troubleshooting preformed: Tested each esc and motor connected to fs-ia6 only on ch3. Swapped out super QQ with another one Binded fs-ia6 with TX 3 times Replaced cables (TRU and A.E.R) TX settings are factory expect ch3 reversed. I still for the life of me can not get any reaction from the motors. What am I doing wrong? Is it settings in the TX? Is it my wiring? Please keep comments to the problem and not on quality of components. (This is a cheap first build)
This site is largely for RTF and beginners as per this FAQ. https://www.droneflyers.com/talk/faq/who-and-what-is-droneflyers-com.1/ You probably will find better answers on RCG or HK, etc.

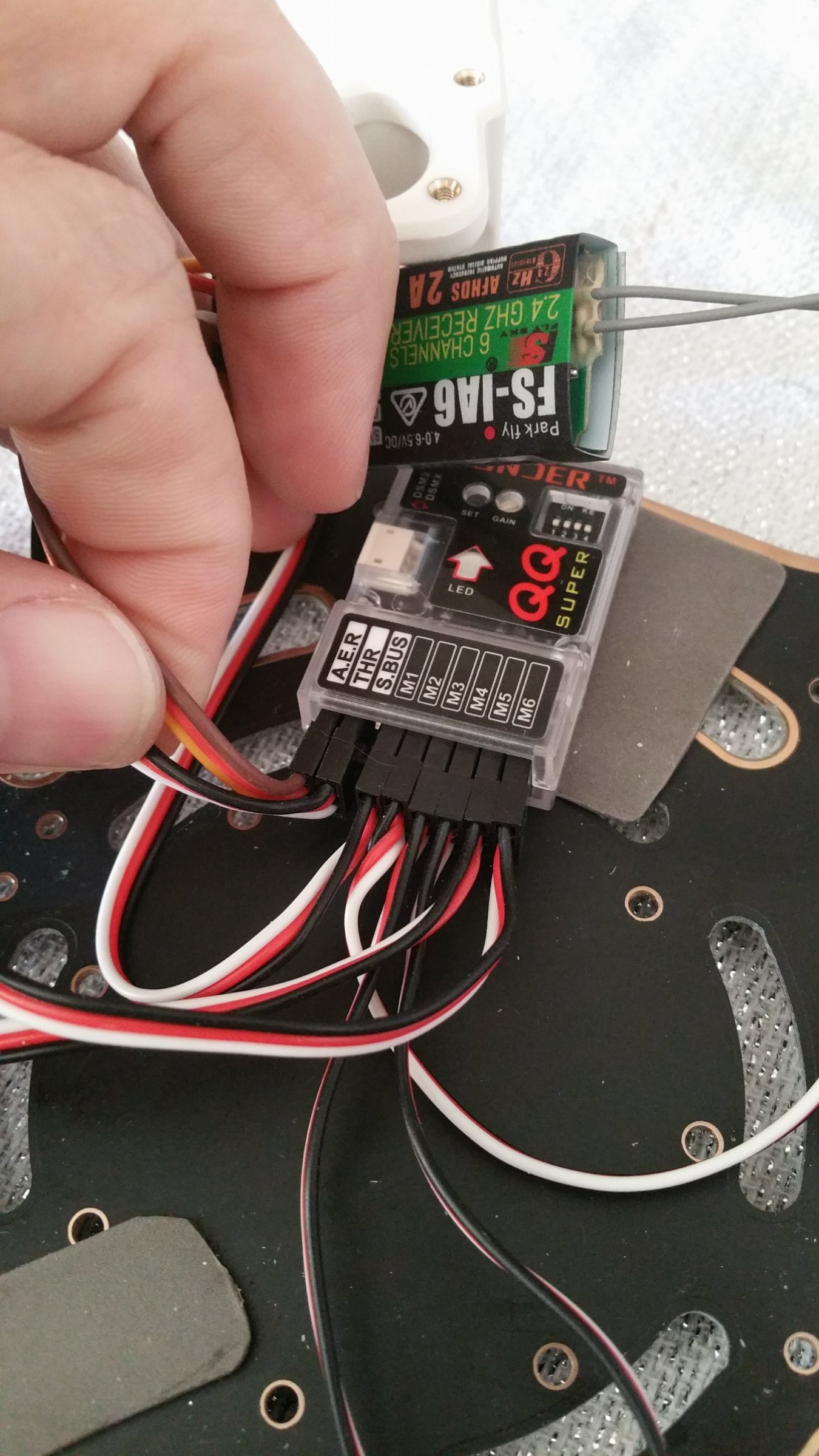

There is really no way to determine how you have it wired from your pic. Do you at least have the QQ's THR going to the i6's ch 3? Have you used the DIPs and set it to Standard?
First you don't need to apologise about your FC. I have a hard time seeing it well but it here's a breakdown of the Flysky's channels. Double check that you are matching them up correctly with the FC. This guy shows it, there is no reason to strip out any ESCs wires though, just plug them in as is. Do note his dip switches settings at the end.
